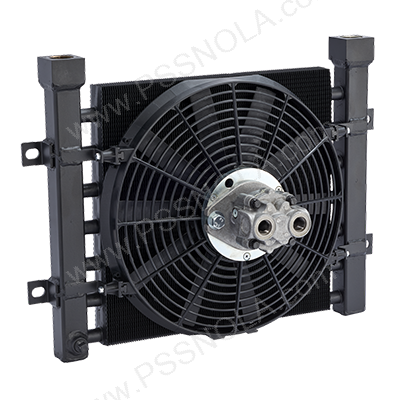

DF Series - Hydraulic Cooler, Oil Cooler & Fuel Cooler

The Mobile DF Series is ideal for very rugged applications, with a robust design that includes steel tanks and damage-resistant steel fins. This series features moderate flows, high heat removal and an optional serviceable internal pressure bypass. Though similar to the DH Series, the DF incorporates DC fans and long-life hydraulic motors.

Features

• Similar to DH with DC fan
• 3/4" tube size
• Low amp draw 12 or 24 V DC motors
• Heavy duty construction
• Long life hydraulic motors
• Rugged applications
• Steel manifolds
• Heat removal to 35,000 BTU/HR
• Oil flows to 110 GPM
• Mounting brackets included
• SA, NPT or 37° flare oil connections
• Damage resistant steel fins

Ratings

• Maximum Operating Pressure 300 PSI
• Maximum Operating Temperature 350°F
• Motor Displacement .22in3/Rev. (Hydraulic)
• Maximum Pressure 2000 PSI (Hydraulic)
• Allowable Backpressure 1000 PSI (Hydraulic)

Materials

• Tubes - Copper
• Fins - Steel
• Turbulators - Steel
• Manifolds - Steel
• Fan Assembly - High Impact Plastic
