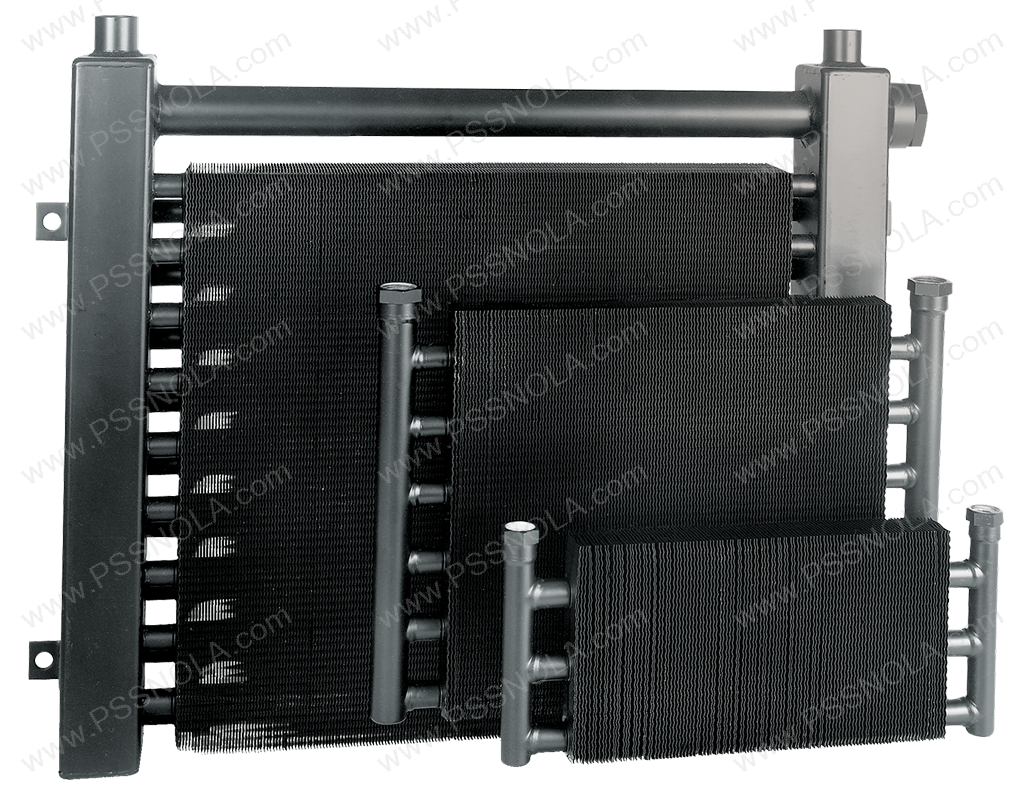

DH Series - Hydraulic Cooler, Oil Cooler & Fuel Cooler

The low cost, high performance Mobile DH Series is an excellent choice for radiator face mount fuel or transmission cooling. This series features moderate flows, high heat removal and an optional internal pressure bypass for cold start-up protection. Material options are also available including steel tanks and steel fins for rugged off-highway applications. Aggressive turbulators allow for optimal heat rejection at lower flow rates.

Features

• Hayden interchange
• Excellent for radiator face mount cooling
• 3/4” tube size
• Steel or aluminum fin
• Copper manifolds – one row
• Steel manifolds – two row
• High performance oil turbulators
• Rugged off-highway steel designs available
• Oil flows to 150 GPM, heat removal to 175,000 BTU/HR

Ratings

• Maximum Operating Pressure 300 PSI
• Maximum Operating Temperature 350°F

Materials

• Tubes - Copper
• Fins - Aluminum / Steel
• Turbulators - Aluminum
• Manifolds - Copper (DH-051 – DH-447), Steel (DH-513 – DH-670)
• Connections - Brass (DH-051 – DH-447), Steel (DH-513 – DH-670)
