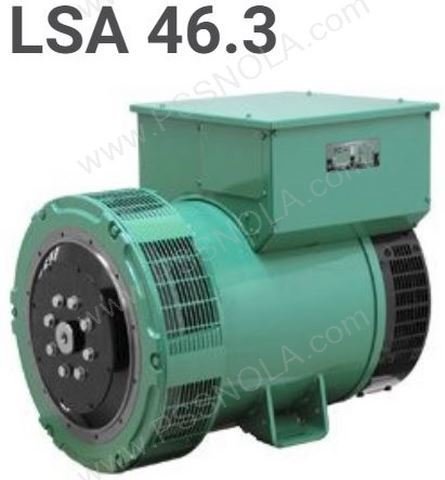

LSA 46.3 - Leroy Somer Alternator (Generator) - 144kW to 365kW
Product Details
Brand:
Leroy Somer
Specially adapted to applications:
The LSA 46.3 alternator is designed to be suitable for typical generator applications, such as: backup, marine applications, rental, telecommunications, etc.
Compliant with international standards:
The LSA 46.3 alternator conforms to the main international standards and regulations: - IEC 60034, NEMA MG 1.32-33, ISO 8528-3, CSA / UL 1446 (UL 1004 on request), marine regulations, etc. It can be integrated into a CE marked generator. The LSA 46.3 is designed, manufactured and marketed in an ISO 9001 environment and ISO 14001.
Reinforced mechanical structure using finite element modelling:
- Compact and rigid assembly to better withstand generator vibrations
- Steel frame
- Cast iron flanges and shields
- Twin-bearing and single-bearing versions designed to be suitable for engines on the market
- Half-key balancing
- Sealed for life ball bearings, regreasable bearings (optional)
Top of the range electrical performance:
- Class H insulation
- Standard 6 wire re-connectable winding, 2/3 pitch, type no. 6S (12 wires optional / winding no. 6)
- Voltage range 50 Hz: 380V - 400V - 415V - 440 V and 220V - 230V - 240V
- Voltage range 60 Hz: 380V - 416V - 440V - 480V and 220 V - 240 V
- High efficiency and motor starting capacity
- Other voltages are possible with optional adapted windings:
- 50 Hz : 440 V (n° 7S), 500 V (n° 9S), 600 V (n° 22S or 23S), 690 V (n° 52S)
- 60 Hz : 380 V and 416 V (n° 8S), 600 V (n° 9S)
- R791 interference suppression conforming to standard EN 55011 group 1 class B standard for European zone (CE marking)
Popular Option Include:
- Filters on air inlet : derating 5%
- Filters on air inlet and air outlet (IP 44) : derating 10%
- Winding protections for harsh environments and relative humidity greater than 95%
- Two bearing configeration
