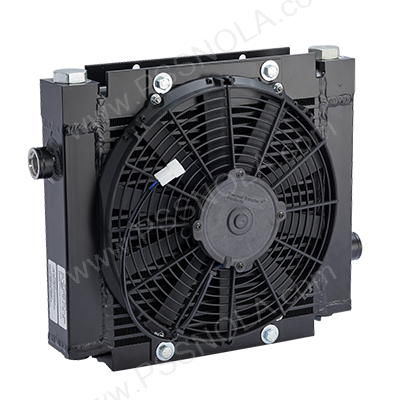

MA Series - Hydraulic Cooler, Oil Cooler & Fuel Cooler

The MA Series provides rugged high performance for demanding mobile equipment oil cooling applications. Select from a broad line of standard units all featuring proven brazed aluminum P-BAR™ plate and bar core technology, engineered with an aggressive turbulator that produces ultra-high heat transfer. Available with axial fans equipped with brushless DC electric motors for extended life, minimal electrical load of over 82% efficiency, custom fan speed control and lower ambient noise. Add the MAGHEX programmable fan controller and sensor for an easy-to-install and low cost alternative to complex control systems.

Features

• Now available with brushless DC fan motors
• Bar and plate brazed aluminum core
• Rugged, lightweight and compact
• Provides the best heat transfer per given envelope size while minimizing pressure drop
• Air-side fin design minimizes fouling and static pressure ensuring long-term, reliable performance
• Fans compliant with IP 68 (brushed) and IP6k9k (brushless) with fully sealed motors
• Welded aluminum fittings/ports and manifolds ensure structural integrity
• Standard SAE ports – NPT and BSPP ports available
• Customized units are available to meet your specific performance requirements

Ratings

• Maximum Operating Pressure 250 PSI
• Maximum Operating Temperature 300°F

Materials

• Core - Brazed Aluminum Bar and Plate
• Tanks – 5052 Aluminum
• Nose Bar & Little Bar – 3003-H Aluminum
• Air Fin, Plate, Turbulator & End Plate – 3003-O Aluminum
• Connections - Aluminum
• Core Mounting Bracket - Brazed Aluminum

Fluid Compatibility

• Petroleum/mineral oils
• Oil/water emulsion
• Water/ethylene glycol
